Respiratory Support Waterfall Processing¶

The waterfall method provides a sophisticated data cleaning and imputation pipeline for respiratory support data, ensuring continuous and complete ventilator records for analysis.

Overview¶

The waterfall processing transforms raw, sparse respiratory support data into a dense, analysis-ready dataset by: - Creating hourly scaffolds for continuous timelines - Inferring missing device and mode information - Forward-filling numeric values within ventilation episodes - Applying clinical logic and heuristics

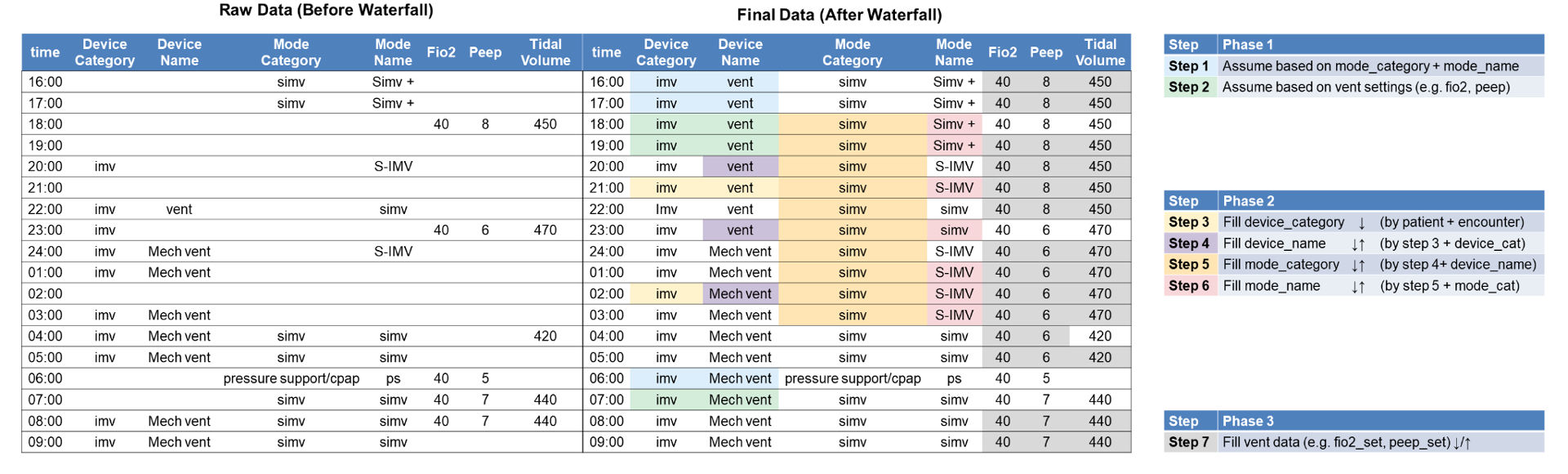

Waterfall Processing Example

Usage¶

Basic Usage¶

from clifpy.tables.respiratory_support import RespiratorySupport

# Load your respiratory support data
resp_support = RespiratorySupport.from_file(
    data_directory="/path/to/data",
    filetype="parquet"
)

# Apply waterfall processing
processed = resp_support.waterfall()

# The result is a new RespiratorySupport instance
processed.validate()  # Validate the processed data
df = processed.df     # Access the DataFrame

Advanced Options¶

# Enable backward fill for numeric values
processed = resp_support.waterfall(bfill=True)

# Use a different ID column for grouping
processed = resp_support.waterfall(id_col="patient_id")

# Get just the DataFrame
df = resp_support.waterfall(return_dataframe=True)

# Silent mode (no progress messages)
processed = resp_support.waterfall(verbose=False)

Timezone Handling¶

The waterfall function expects data in UTC timezone. If your data is in a different timezone, it will be automatically converted:

# Your data is in US/Eastern
processed = resp_support.waterfall(verbose=True)
# Output: "Converting timezone from US/Eastern to UTC for waterfall processing"

Processing Pipeline¶

The waterfall processing consists of five phases:

Phase 0: Initialize & Build Hourly Scaffold¶

Lower-case all text columns - Standardizes device and mode names for consistent matching
Coerce numeric setters to floats - Ensures all numeric columns have proper data types
Scale FiO₂ if needed - Corrects common documentation errors (e.g., 40 → 0.40)
Create hourly scaffold - Inserts synthetic rows at HH:59:59 for each hour
Ensures every patient has a dense, regular timeline
Vital for plots, per-hour metrics, and length-of-stay calculations
These scaffold rows serve as "landing spots" for forward-fill operations

Phase 1: Device/Mode Heuristics¶

Applies intelligent rules to repair missing device and mode labels:

IMV from mode strings - Infers invasive mechanical ventilation from mode categories
Look-ahead/behind logic - Uses surrounding context to fill gaps
Device-specific repairs:
BiPAP device name standardization
Nasal cannula PEEP guards
Mode category inference
Data cleaning:
Removes rows with no usable information
Handles timestamp duplicates
Prioritizes non-NIPPV entries when duplicates exist

Phase 2: Hierarchical IDs¶

Creates four nested run-length identifiers within each encounter:

device_cat_id → device_id → mode_cat_id → mode_name_id

Each ID increments when its label or parent ID changes
Enables tracking of ventilation episodes and mode transitions
Provides grouping keys for the numeric fill phase

Example progression:

Time  Device_Category  Device_Cat_ID  Mode_Category  Mode_Cat_ID
10:00 IMV             1              AC/VC          1
11:00 IMV             1              AC/VC          1
12:00 IMV             1              SIMV           2  ← mode change
13:00 NIPPV           2              CPAP           3  ← device change

Phase 3: Numeric Waterfall¶

Performs intelligent filling of numeric values within each mode_name_id block:

Forward-fill by default - Carries last known settings forward
Optional backward-fill - When bfill=True, also fills backwards
Special handling:
FiO₂ defaults to 0.21 for room air
Tidal volume blanked for pressure support modes
Trach collar acts as a "breaker" for fills
Preserves clinical logic - Respects mode transitions and device changes

Phase 4: Final Tidy-up¶

De-duplicate rows - Ensures one row per timestamp
Sort chronologically - Orders by encounter and time
Forward-fill tracheostomy flag - Carries trach status through entire encounter
Clean up helper columns - Removes temporary calculation fields
Preserve scaffold indicator - is_scaffold column marks synthetic rows

Output Format¶

The processed DataFrame includes:

Original Columns (cleaned and filled)¶

All original respiratory support columns
Numeric values filled within appropriate contexts
Categorical values standardized and inferred

New Columns¶

device_cat_id - Device category episode ID
device_id - Device instance episode ID
mode_cat_id - Mode category episode ID
mode_name_id - Mode instance episode ID
is_scaffold - Boolean flag for synthetic hourly rows

Example¶

import pandas as pd
from clifpy.tables.respiratory_support import RespiratorySupport

# Sample data with gaps
data = pd.DataFrame({
    'hospitalization_id': ['H001', 'H001', 'H001'],
    'recorded_dttm': pd.to_datetime([
        '2023-01-01 10:30',
        '2023-01-01 14:15',  # 4-hour gap
        '2023-01-01 15:00'
    ]).tz_localize('UTC'),
    'device_category': ['imv', None, 'imv'],  # Missing value
    'fio2_set': [0.5, None, 0.4],
    'peep_set': [8, None, 10],
    # ... other columns
})

# Create instance and process
rs = RespiratorySupport(data=data)
processed = rs.waterfall()

# Result will have:
# - Hourly rows at 11:59:59, 12:59:59, 13:59:59
# - Device category filled for 14:15 row
# - FiO₂ and PEEP carried forward through gaps
# - Hierarchical IDs tracking ventilation episodes

Clinical Considerations¶

Scaffold rows are synthetic - Filter by is_scaffold == False for actual observations
Fills respect clinical boundaries - Values don't cross mode/device transitions
Room air defaults - FiO₂ set to 0.21 (21%) for room air observations
Tracheostomy persistence - Once documented, carries through admission

Performance Notes¶

Processing time scales with number of encounters and data density
Memory usage increases due to hourly scaffold creation
Consider processing in batches for very large datasets
